What Gauge Wire For LED Strips? Everything You Should Know Before You Install

What Gauge Wire For LED Strips?

For most LED strip light installations, you’ll want to use 18–22 gauge wire. This range is ideal depending on your setup: use 20–22 AWG for short runs under 10 feet with low power, and go for 18 AWG for longer runs or higher power loads. Choosing the right wire gauge matters more than you think – get it wrong, and you risk flickering lights, overheating, or poor brightness.

In this guide, we’ll show you how to select the right wire to keep your lighting system safe, efficient, and stunning.

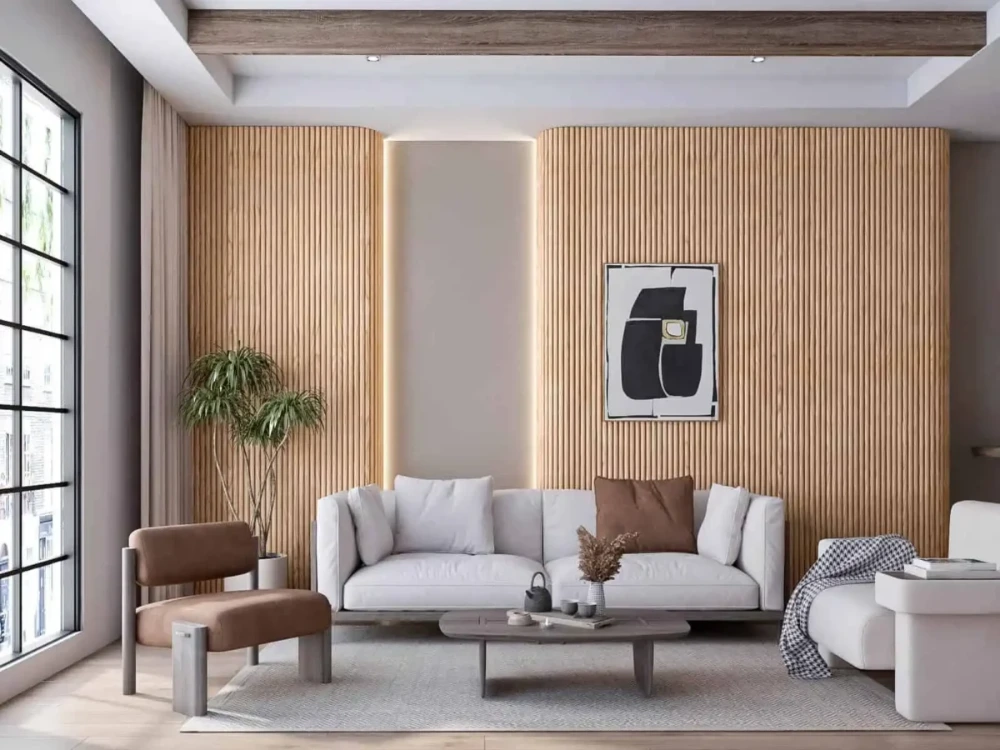

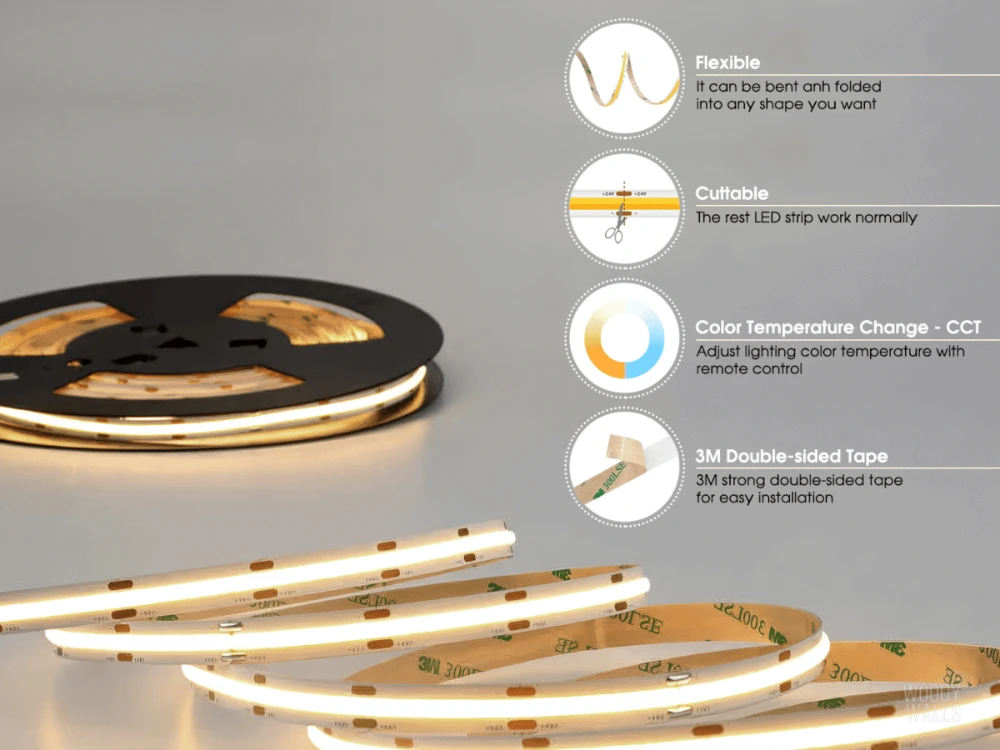

Whether you’re lighting up a cozy kitchen counter or installing a dynamic accent wall with COB LED strip lights, the team at The Accent Light has you covered with high-quality LED products and tailored lighting kits.

Understanding What Gauge Wire Means For LED Light Strips

Wire gauge refers to the thickness of a wire, measured using the American Wire Gauge (AWG) system. The higher the number, the thinner the wire. So, a 22 AWG wire is thinner than an 18 AWG wire.

Why does this matter for LED lighting? Because thinner wires have higher electrical resistance, which can lead to voltage drop – a loss of power that dims your lights and reduces performance. Choosing the correct wire gauge ensures your LED strips run efficiently and safely.

Let’s put it in context: imagine running a 22 AWG wire over 20 feet to power a strip that draws 3 amps. You’d likely experience noticeable dimming. On the other hand, an 18 AWG wire would deliver consistent brightness across the same length.

Factors That Affect What Gauge Wire For LED Strips You Should Use

Several factors influence your wire choice:

• Voltage of the LED Strips: 12V strips draw more current than 24V strips to achieve the same brightness. As a result, 12V setups are more susceptible to voltage drop and may need thicker wire.
• Total Power Load: Calculate the total wattage of your LED strips (Watts = Voltage x Amps). Divide the total wattage by voltage to get the amperage, which tells you how thick your wire needs to be.
• Run Length: Every foot of wire increases resistance. For a 15-foot wire run, for instance, 18 AWG might suffice for a moderate setup, but 16 AWG offers better reliability.
• Power Supply Position: Powering from one end of a long strip? You’ll need thicker wire. Splitting the power from the middle can reduce the load per wire and allow you to use thinner wire on each side.

What Gauge Wire for LED Strips?

So, what gauge wire for LED strips?

Here’s a quick reference to help guide your wire gauge decision:

• Under 10 ft (low power): Use 20–22 AWG
• 10 to 20 ft (moderate power): Use 18 AWG
• 20+ ft or high power setups: Consider 16 AWG or even 14 AWG

Consider a setup running 3 meters (about 10 ft) of 12V LED strips that draw 24W. That’s 2 amps (24W ÷ 12V = 2A). A 20 AWG wire would handle this safely for that distance, but if you’re adding a dimmer or controller, stepping up to 18 AWG gives you more headroom.

Use stranded copper wire for flexibility, especially when bending around corners or fitting into tight aluminum channels. Solid core wire can break more easily when flexed repeatedly.

Need a reliable, plug-and-play setup? Check out LED Strip Lights for solutions that work seamlessly with standard gauge wires.

How Voltage Drop Affects What Gauge Wire for LED Strips You Need

Voltage drop is the decrease in voltage as electricity travels along the wire. If you use wire that’s too thin or run it too long, your LEDs may appear dimmer at the far end or not turn on at all.

Let’s say you’re installing 16 feet of LED strip drawing 3 amps at 12V. Using 20 AWG wire, you could experience a voltage drop of around 1.4V, enough to reduce brightness significantly. Switching to 16 AWG cuts that drop to under 0.5V.

To minimize voltage drop:

• Use a thicker gauge wire
• Shorten wire runs when possible
• Inject power at multiple points (especially in longer runs)
• Use 24V LED strips where possible to reduce current draw

What Gauge Wire for LED Strips: Tips for a Safe, Clean Install

• Use quality materials: Stick with UL-listed, stranded copper wire. Avoid aluminum or copper-clad aluminum (CCA) wire, which has higher resistance and lower durability.
• Choose proper connectors: Soldering ensures a secure connection, but clip-on connectors are great for quick, tool-free installations.
• Hide wires smartly: Use aluminum channels to route and protect wires, especially in visible or high-traffic areas.
• Always test: Use a multimeter to check voltage at the strip ends before finalizing your setup.
• Label wires: For complex installations, labeling helps during maintenance or expansion.

Common Mistakes When Choosing What Gauge Wire for LED Light Strips

• Going too thin: Using 22 AWG on a 20-foot, high-load run leads to overheating and dimming.
• Guessing instead of calculating: Don’t eyeball your setup. Always measure run length and calculate power load.
• Overlooking strip specs: Different strips (e.g., RGB vs. single-color) draw different amounts of power.
• Ignoring the install layout: Powering from one end instead of the center or both ends causes uneven lighting.
• Mismatched connectors: Some connectors are only rated for specific wire gauges. Forcing a thick wire into a small terminal can damage both components.

Final Advice

What gauge wire for LED strips?

To recap: if you want consistent brightness and safe operation, use 18–22 AWG wire based on your LED strip length and power load. Calculate your current draw, consider the wire length, and when in doubt, go one gauge thicker.

For flawless results, trust The Accent Light. Our LED Strip Lights and Lighting Kits come with everything you need to get it right the first time, including components that match your ideal wire gauge.

Need help choosing the right wire or lighting combo? Our team is ready to guide you every step of the way. From customized design suggestions to wiring walkthroughs, we’re here to make your lighting project smooth, safe, and visually stunning.

Ready to light your space beautifully and safely? Explore The Accent Light’s premium LED strip solutions today.
