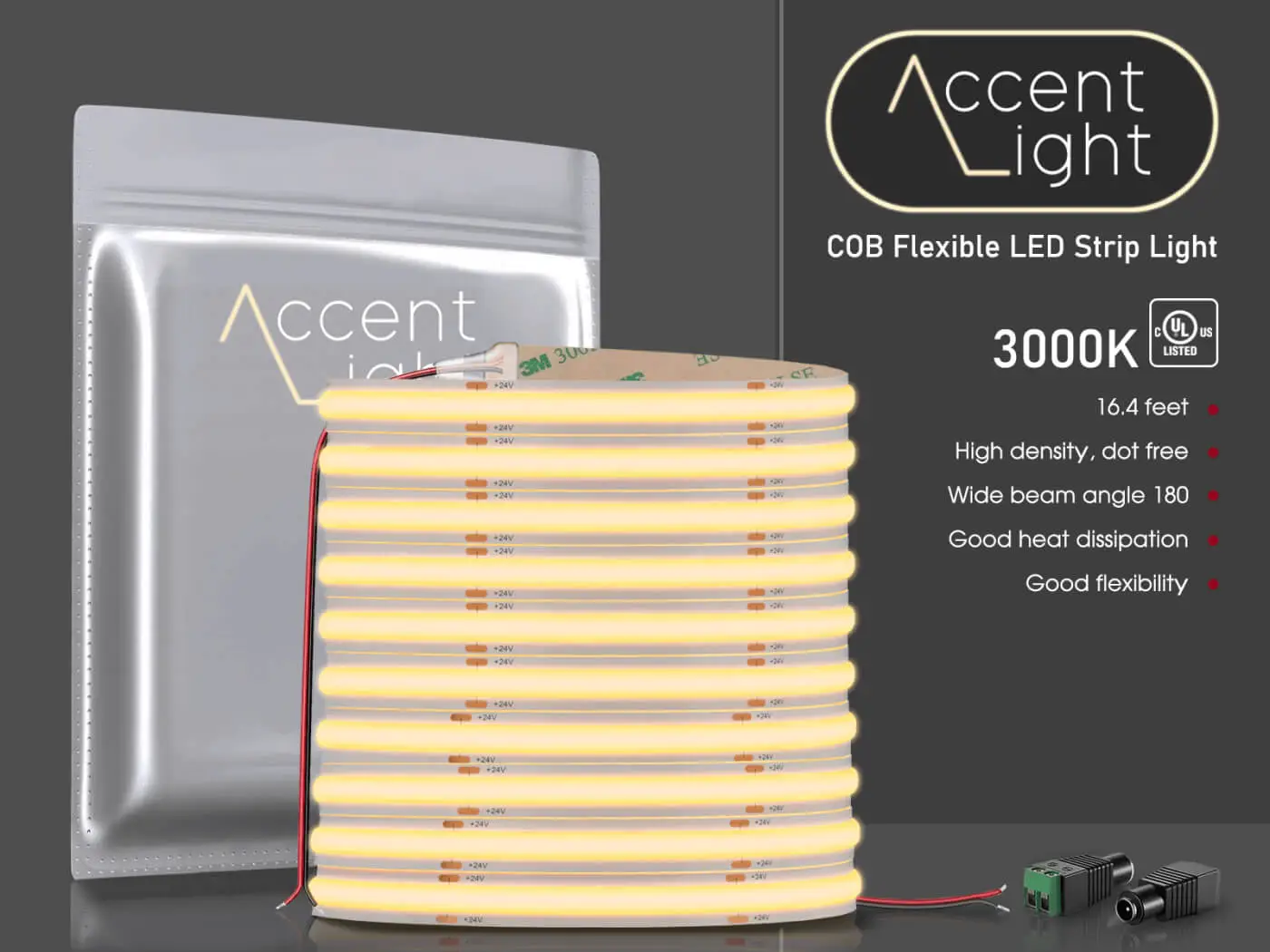

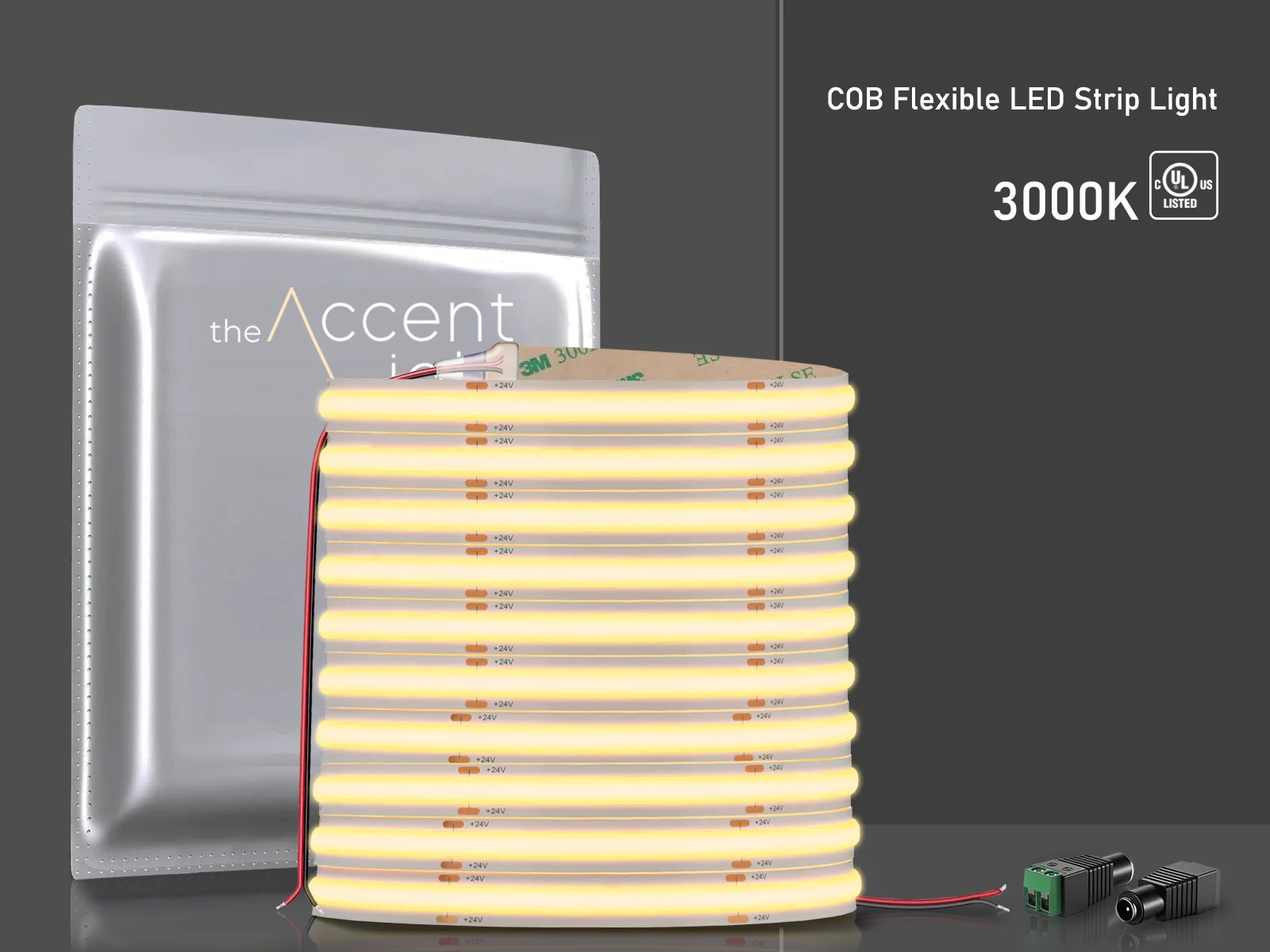

24V COB LED Strip Single color IP20

Description

Illuminate your space with stunning clarity and smooth lighting using our 24V COB LED Strip Single Color IP20. Designed for high-performance indoor lighting projects, this COB (Chip-on-Board) LED strip light provides brilliant, continuous illumination with minimal spotting, making it ideal for accent lighting, under-cabinet lighting, cove lighting, and more. Whether you’re a DIY enthusiast or a professional installer, this energy-efficient strip light delivers quality and flexibility for any design.

Why Choose Our 24V COB LED Strip Single Color IP20?

When quality, efficiency, and aesthetics matter, our 24V COB LED Strip is the perfect lighting solution for your project:

• Dot-Free Illumination: Advanced Chip-on-Board (COB) technology delivers a seamless line of light. This strip removes visible dots or hotspots while ensuring clean, uniform illumination. Ideal for modern lighting designs. Perfect for under cabinets, shelves, and decorative accents.
• High CRI 95+: A Color Rendering Index of 95+ is provided for true-to-life color accuracy. Color integrity is maintained, making it ideal for retail lighting, photography, kitchens, and makeup areas.
• Higher LED Density: The total number of LEDs per foot is 146, ensuring bright and consistent illumination. No dark gaps are found in the strip to give a smooth lighting experience across its entire length.
• Energy Efficient: This product is perfect for long-term usage as it only consumes 3.2 watts per foot while producing 100–110 lumens per watt.
• Cuttable Design: Can be cut freely to suit the specific length of your project. Installation flexibility and precision are ensured.
• Flexible & Compact: As its width is only 8mm (5/16″), it fits snugly into LED channels or narrow spaces. This helps to maintain a sleek and tidy space.
• Safe & Long-Lasting: UL Listed for safety and built to last up to 30,000 hours, giving you peace of mind and long-term value.
• Easy Installation: This 24v cob led strip is backed with strong adhesive. These characteristics give you a hassle-free setup with ease.

What You’ll Need

To complete your LED lighting setup, you’ll need:

• 24V COB LED Strip Light (Included)
• 2 DC Female-to-Wire Connectors (Included)
• 24V DC Power Supply (Sold separately – select a wattage equal to or greater than total project wattage)
• Optional:

• LED Dimming Controller or Dimmer Switch

• LED Mounting Channels with Diffuser Covers

• Double-Sided Tape or Screws (if needed for extra hold)

• Wire Splice Connectors (for cutting and reconnecting segments)

For a complete and ready-to-install solution, consider our LED lighting kits that include everything needed to start.

Detailed Product Specs

Specification	Details
Voltage (Input – Output)	24V DC
LED Type	COB (Chip-on-Board), 146 LEDs/FT
Light Quality	Smooth, dot-free, uniform illumination
Dimming	Yes, compatible with ELV, TRIAC, DMX, Dali, 0-10V, RF
CRI (Color Rendering)	95+ High CRI for vivid, true-to-life color
Length	16.4 ft (5m) – freely cuttable to fit your desired length (24 LEDs/section)
Installation	Peel-and-stick adhesive backing
Mounting Options	Direct mounting, LED channels (recommended for finish)
Power Supply	24V DC (sold separately)
Applications	Indoor only (IP20) – homes, retail, office, displays



Recommended Uses

Thanks to its slim size, high density, and even glow, the 24V COB LED Strip Single Color IP20 is perfect for a wide variety of indoor applications:

• Home Lighting – Perfect for under cabinets, in coves, or behind mirrors for soft, ambient lighting.
• Retail Displays – Highlight products with smooth, continuous illumination that draws attention.
• Office SpacesAdd mood lighting or functional accents for workstations
• Hospitality & Lounge AreasUse as backlighting in bars, lounges, or decorative signage
• Architectural FeaturesAccent walls, alcoves, and stairs for dramatic, modern design effects

Customizing your lighting project is easy with this COB LED strip. It’s designed to be cut every 2.5 inches, giving you precise control over the length:

• Find the marked cut lines
• Use sharp scissors to make clean cuts
• Each cut section includes 24 LEDs for a uniform glow

How to Set It Up

Installing the 24V COB LED strip is a simple process, even for beginners. Just follow these steps:

1. Plan Your Layout

• Measure the total length needed.
• Multiply feet by 3.2W to calculate the total power draw.
• Choose a power supply rated for the total wattage or higher.

2. Cut to Size (If Needed)

• Freely cuttable to any length—no fixed cut intervals.
• Use a sharp pair of scissors to make a clean cut.

3. Prepare the Surface

• Clean and dry the mounting area thoroughly.

4. Peel and Stick

• Remove the adhesive backing and firmly press the strip into place.

5. Connect to Power Supply

• Use the included DC female-to-wire connectors.
• Ensure correct polarity and secure connections.

6. Add Dimming (Optional)

• Install a compatible dimmer or dimmable LED driver for more control.

7. Use LED Channels (Optional)

• For a professional look and diffused light, install the strip in an LED channel with diffuser covers.

Shipping Info

FREE SHIPPING for all orders within the continental U.S.

In-stock orders are typically processed within 48 business hours, not including U.S. federal holidays. During peak times, shipping delays may occur. We primarily ship via UPS Ground, and delivery times depend on your location. You’ll receive a tracking email once your order ships.

For Canadian orders, please email us at info@theaccentlight.com with your email, shipping address, product details, and quantities.

Note: Canadian shipping excludes duties, taxes, and is not included in product pricing.

FAQs

1. Can I use this strip outdoors?

No, this strip is IP20 rated and is designed for indoor use only.

2. Can I cut the LED strip?

Yes, the strip is cuttable for each 2.5 inches, only on cat mark. Each section contains 24 LEDs.

3. Do I need a special power supply?

Yes, you’ll need a 24V DC power supply. Ensure the wattage is rated to meet or exceed your total project needs.

4. Is this strip dimmable?

Yes, when used with a dimmable 24V driver and a compatible dimmer switch.

5. What does “COB” mean?

COB stands for Chip-on-Board. It’s a lighting technology where many LED chips are packed closely together to create smooth, dot-free light.
